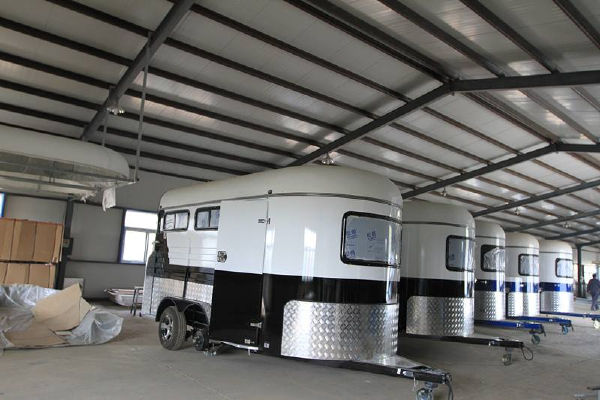

fibreglass horse float living quarters chinese imported horse floats

fibreglass horse float living quarters chinese imported horse floats

  • Min.Order Quantity: 1 Set
  • Supply Ability: 30 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2005-01-20
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  25
  • Place of Origin:  China
  • Brand Name:  truckmore
  • Model Number:  2HSL-D
  • Weight: 1300.000 kg

Materials

Chassis Material

double hot dip galvanized RHS (3.5mm-4.0mm)

Frame Material

double hot dip galvanized RHS (2.5mm)

Body Panel

galvanized sheet (1.2mm)

Roof

special molded FRP

Nuts &bolts

stainless steel



Drawbar

Drawbar Checker Plate

1.2mm aluminium

Drawbar Safety Chain

2

Swing-up jockey wheel

1



Suspension  &

Axles

Suspension

7-leaf Roll rocker tandem spring

Axles

2*45*45mm solid axle

Break system

both axle electric brake with manual hand brake



Wheels & Tyre

Wheel rim

14’ aluminum alloy rims

Tyre

185R14C

Spare wheel

1



Rubber

Inner Side Panel

10mm Rubber

Floor

18mm plywood and 10mm Rubber

Ramp Door

18mm plywood and 10mm Rubber



Mudguard

Mudguard type

compact mudguard

Mudguard checker plate

1.2mm aluminium in the front of mudguard

Pedal &aluminium step

1.2mm aluminium decoration board







Windows & Doors

Front Window

1220*610mm

Side Windows

two slide open with flyscreen

Vents

2

Rear Upper Door

2020*1065mm

Ramp Door

2020*1210mm

Side Door

1750*610mm

Rear upper&ramp door strut

High-intensity anti-rust strut

Hinges for Rear Upper Door

special 6mm diameter copper hinges



Lights

Trailer Plug

square or flat Seven-core Plug

Rear Lights brackets

aluminium plate protect  /  just square tube bracket

LED interior lights

1

LED sidelights

6

LED combination taillights

2 group







Auxiliary Fitting

Cupboard

front

Horse Protection Frame

fully padded

Horse Ring

4

Rug Rack

front

Saddle Rack

two saddle rack in the front tack of cupboard

Tack box

one



Dimensions

Inner Dimension (L x W x H)

3450 x 1700 x 2155mm

Body Dimension (L x W x H )

3475 x 1750 x 2230mm

Overall Dimension(L x W x H)

4325 x 2270 x 2590mm
